PH (1.60mm pitch) length (mm) + number of ribs

Ribbed belts - Profile PH section (1.60mm pitch). Fans, air conditioning, concrete saws, wood saws, industrial washing machines. To help you identify your belt if it is not marked, we advise the following. Step 1. Identification of the pitch, so measure from the middle of one rib across to the middle of the next rib to it.  Step 2. Count the number of ribs. Step 3. Measure the circumference of the belt to determine the length (all the way around). So three things only, the pitch, the number of ribs and the length. To endorse the measurement of the pitch of the ribs, measure the width of the belt and then times X the number of ribs by the pitch, this will confirm. Example PH (the pitch ) 1075mm length and 7 is 7 ribs so PH1075/7 Ribs.

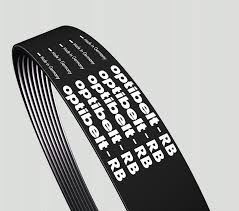

The ribbed belt combines the high flexibility of flat belts with the high performance of V-belts. The V-shaped parallel ribs are made from a wear-resistant rubber compound. The high strength tension cord is designed for the many applications of the ribbed belt.



There are no downloads for this product.

Code Your Part No Description Price Quantity
PH1016/6 RIBS OPTIBELT PH Ribbed Belt 1016mm (40 inches) 6 Ribs £18.47 (inc VAT) Each
£15.39 (exc VAT) Each
PH1168/6 RIBS OPTIBELT PH Ribbed Belt 1168mm (46 inches) 6 Ribs £18.78 (inc VAT) Each
£15.65 (exc VAT) Each
PH1168/9 RIBS OPTIBELT PH Ribbed Belt 1168mm (46 inches) 6 Ribs £18.78 (inc VAT) Each
£15.65 (exc VAT) Each
PH1200/6 RIBS OPTIBELT PH Ribbed Belt 1200mm (47.24 inches) 6 Ribs £20.87 (inc VAT) Each
£17.39 (exc VAT) Each
PH1200/8 RIBS OPTIBELT PH Ribbed Belt 1200mm (47.24 inches) 8 Ribs £20.93 (inc VAT) Each
£17.44 (exc VAT) Each
PH1230/6 RIBS OPTIBELT PH Ribbed Belt 1230mm (48.42 inches) 6 Ribs £22.10 (inc VAT) Each
£18.42 (exc VAT) Each
PH1262/6 RIBS OPTIBELT PH Ribbed Belt 1262mm (49.68 inches) 6 Ribs £23.33 (inc VAT) Each
£19.44 (exc VAT) Each
PH1285/6 RIBS OPTIBELT PH Ribbed Belt 1285mm (50.59 inches) 6 Ribs £27.02 (inc VAT) Each
£22.52 (exc VAT) Each
PH1301/6 RIBS OPTIBELT PH Ribbed Belt 1301mm (51.22 inches) 6 Ribs £28.26 (inc VAT) Each
£23.55 (exc VAT) Each
PH1321/6 RIBS OPTIBELT PH Ribbed Belt 1321mm (52 inches) 6 Ribs £28.26 (inc VAT) Each
£23.55 (exc VAT) Each
PH1475/6 RIBS OPTIBELT PH Ribbed Belt 1475mm (58.07 inches) 6 Ribs £29.48 (inc VAT) Each
£24.57 (exc VAT) Each
PH1600/6 RIBS OPTIBELT PH Ribbed Belt 1600mm (63 inches) 6 Ribs £30.76 (inc VAT) Each
£25.63 (exc VAT) Each
PH1854/6 RIBS OPTIBELT PH Ribbed Belt 1854mm (73 inches) 6 Ribs £31.99 (inc VAT) Each
£26.66 (exc VAT) Each
PH1860/7 RIBS MEGADYNE PH Ribbed Belt 1860mm (73.22 inches) 7 Ribs £31.99 (inc VAT) Each
£26.66 (exc VAT) Each
PH1895/6 RIBS OPTIBELT PH Ribbed Belt 1895mm (74.60 inches) 6 Ribs £33.22 (inc VAT) Each
£27.68 (exc VAT) Each
PH1904/7 RIBS MEGADYNE PH Ribbed Belt 1904mm (74.96 inches) 7 Ribs £31.99 (inc VAT) Each
£26.66 (exc VAT) Each
PH698/6 RIBS OPTIBELT PH Ribbed Belt 698mm (27.48 inches) 6 Ribs £15.95 (inc VAT) Each
£13.29 (exc VAT) Each
PH735/6 RIBS OPTIBELT PH Ribbed Belt 735mm (28.93 inches) 6 Ribs £15.95 (inc VAT) Each
£13.29 (exc VAT) Each
PH762/6 RIBS OPTIBELT PH Ribbed Belt 762mm (30 inches) 6 Ribs £15.98 (inc VAT) Each
£13.32 (exc VAT) Each
PH813/6 RIBS OPTIBELT PH Ribbed Belt 813mm (32 inches) 6 Ribs £16.07 (inc VAT) Each
£13.39 (exc VAT) Each
PH864/6 RIBS OPTIBELT PH Ribbed Belt 864mm (34 inches) 6 Ribs £17.17 (inc VAT) Each
£14.31 (exc VAT) Each
PH955/6 RIBS OPTIBELT PH Ribbed Belt 955mm (37.59 inches) 6 Ribs £18.41 (inc VAT) Each
£15.34 (exc VAT) Each
PH965/6 RIBS OPTIBELT PH Ribbed Belt 965mm (38 inches) 6 Ribs £18.41 (inc VAT) Each
£15.34 (exc VAT) Each
PH990/6 RIBS OPTIBELT PH Ribbed Belt 990mm (38.97 inches) 6 Ribs £18.44 (inc VAT) Each
£15.37 (exc VAT) Each
